How the System Works
Dissolved oxygen in boiler feed-water causes pitting and tube failure. Hydrazine (or safer alternatives such as carbohydrazide and DEHA) reacts with oxygen to form harmless nitrogen and water. A dosing system trims the scavenger feed to the measured dissolved-oxygen level, protecting boilers and steam systems while minimising chemical use.
Standard Configuration
- Sealed PE/PP day tank with nitrogen blanket option
- Metering pump, PVDF head, manual + automatic stroke
- Online dissolved-oxygen analyser
- Feed-water line injection with back-flow protection
- PLC control cabinet with touchscreen HMI
Key Features
- Closed-loop DO control avoids over-dosing
- Supports hydrazine and non-toxic alternatives
- Sealed, ventilated storage for safety
- Low-level and pump-fault alarms
- Data logging and remote alarm
Typical Applications
- Industrial and utility boiler feed-water
- Steam and turbine auxiliary systems
- Hot-water and district-heating loops
- HRSG and waste-heat boilers
- Power and petrochemical steam plants
Technical Specifications
| Model | Tank material | Control mode | Power supply |
|---|---|---|---|
| ELT-HZ200 / ELT-HZ500 | PE / PP | Manual / Automatic / PLC touchscreen | 220V / 380V, 50Hz |
| ELT-HZ1000 / ELT-HZ2000 | PE / PP + SS frame | PLC touchscreen / DCS / GPRS | 380V, 50Hz |
| ELT-HZ4000 | PP (corrosive duty) | PLC with frequency inverter | 380V, 50Hz |
Our hydrazine and oxygen-scavenger dosing systems remove dissolved oxygen from boiler feed-water to stop internal corrosion.
Each unit is engineered in 3D and can be supplied with PLC automation and touchscreen HMI control, ready to run from day one.
Each unit is engineered in 3D and can be supplied with PLC automation and touchscreen HMI control, ready to run from day one.
Equipment Video

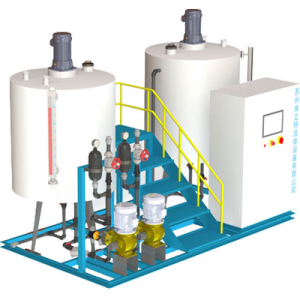

Typical Hydrazine Deaeration Dosing Components
1. Oxygen-scavenger day tank (PE/PP, sealed)
2. Metering / dosing pump with PVDF head
3. Dissolved-oxygen analyser with feedback control
4. Injection point on the feed-water line
5. Control cabinet (PLC automatic control) and field instruments
Our Engineering Advantages
- Every system designed in the latest 2D and 3D CAD and SolidWorks software
- Automation and control available (PLC and HMI)
- One-stop, turnkey system supply
- Complete technical documentation
- Operator training and commissioning support
- Minimal on-site installation work
- Shorter lead times, lower project cost and a higher project success rate
