How the System Works
Lime (Ca(OH)2) and soda ash (Na2CO3) react with calcium and magnesium to precipitate hardness; lime also raises pH for coagulation and corrosion control. A dosing system continuously prepares a well-mixed slurry and feeds it proportional to flow, supporting reliable softening and stabilised alkalinity in drinking-water and industrial plants.
Standard Configuration
- Dissolving and multi-stage ageing tanks with agitators
- High-shear mixer for lump-free slurry
- Progressive cavity or diaphragm slurry pumps
- pH and turbidity analysers for dose trim
- PLC control cabinet with touchscreen HMI
Key Features
- Stable slurry avoids grit and inconsistent dose
- Flow-proportional softening control
- pH and alkalinity trim loops
- Heavy-duty, abrasion-resistant wetted parts
- Dust-controlled dry-chemical feed hopper
Typical Applications
- Municipal water softening
- Drinking-water pH and alkalinity correction
- Industrial boiler and process-water pretreatment
- Mine water and neutralisation
- Wastewater precipitation treatment
Technical Specifications
| Model | Tank material | Control mode | Power supply |
|---|---|---|---|
| ELT-LS300 / ELT-LS800 | SS / PP | Manual / Automatic / PLC touchscreen | 220V / 380V, 50Hz |
| ELT-LS1500 / ELT-LS3000 | 316 SS / PP | PLC touchscreen / DCS / GPRS | 380V, 50Hz |
| ELT-LS5000P | PP (abrasive duty) | PLC with frequency inverter | 380V, 50Hz |
Our lime and soda ash dosing systems prepare a stable slurry and feed it to precipitate hardness and correct pH in raw and process water.
Each unit is engineered in 3D and can be supplied with PLC automation and touchscreen HMI control, ready to run from day one.
Each unit is engineered in 3D and can be supplied with PLC automation and touchscreen HMI control, ready to run from day one.
Equipment Video

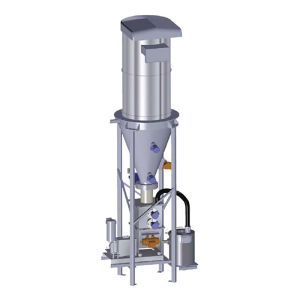

Typical Lime & Soda Ash Dosing Components
1. Lime/soda-ash dissolving and ageing tanks
2. High-shear mixer for uniform slurry
3. Slurry metering pump (progressive cavity or diaphragm)
4. Inline flash mixer and contact basin interface
5. Control cabinet (PLC automatic control) and level gauges
Our Engineering Advantages
- Every system designed in the latest 2D and 3D CAD and SolidWorks software
- Automation and control available (PLC and HMI)
- One-stop, turnkey system supply
- Complete technical documentation
- Operator training and commissioning support
- Minimal on-site installation work
- Shorter lead times, lower project cost and a higher project success rate
